Transfer data using TCP client

Transfer data using TCP client#

Note

Only applicable to scanners that support Wi-Fi transmission, such as DS2800.

Quick configuration#

Note

When you use third-party software to build a TCP server, you can use this tool to generate configuration code.

Demo software#

Connect#

  1. Download the demo software and extract it to a local directory.

  2. Open the demo software, enter the Wi‑Fi information and TCP server information that the scanner needs to connect to, and then use the scanner to scan the QR code below.

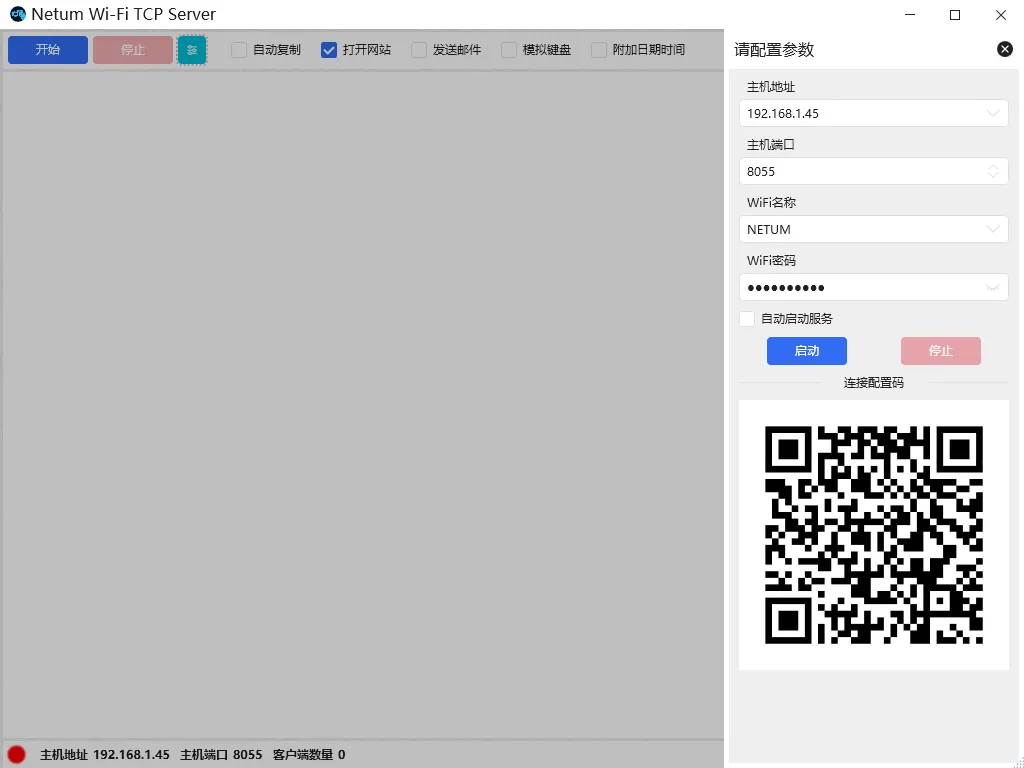

../../_shared/_images/wireless-wifi/wifi-tcpserver1.png

TCP server configuration QR code example#

  1. Click Start Service, or start the TCP service programmatically.

  2. Wait for the scanner to actively connect to the TCP service provided by the software.

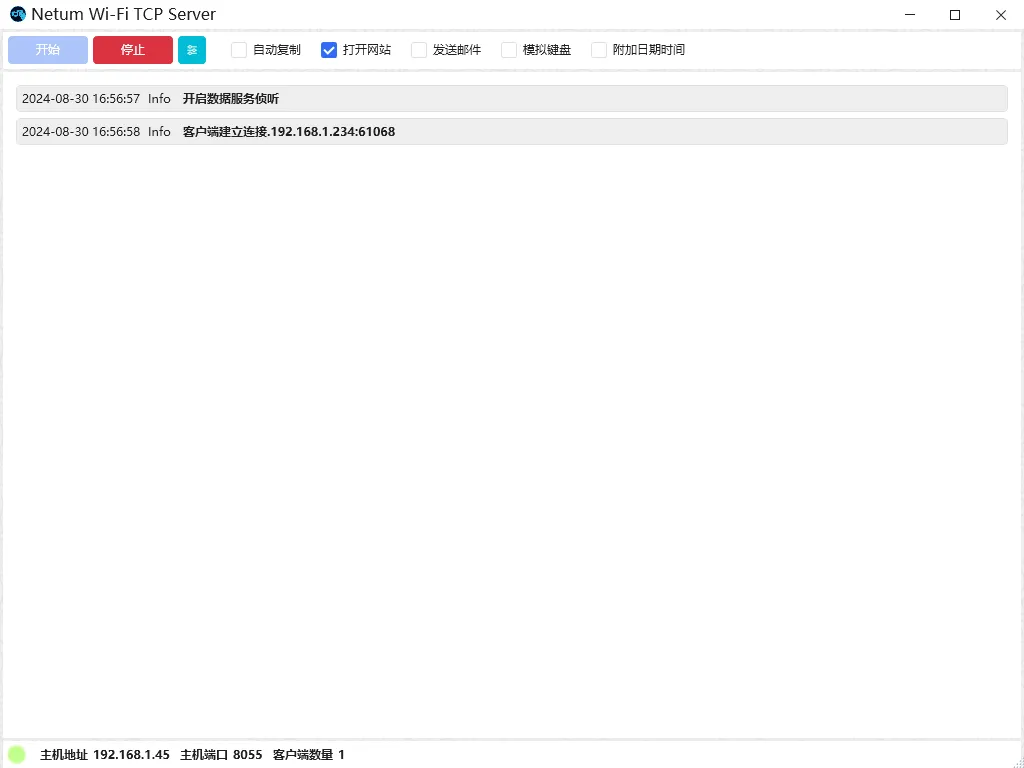

../../_shared/_images/wireless-wifi/wifi-tcpserver2.png

TCP server running example#

Note

  • Host address: The IP address of the computer where the TCP service is located.

  • Host port: The port number that the TCP service listens on.
